WOLIZE - Flexible collapsible pvc water bladder irrigation water bladder water storage bladders tank PVC TPU BLADDER
Thanks to the efforts of our staff,Shandong Wolize Biotechnology Co., Ltd. can launch our Flexible collapsible pvc water bladder irrigation water bladder water storage bladders tank release meeting as scheduled. Our FlexiTank is supplied with a competitive price . The use of the technology contributes to the perfect manufacturing of WOLIZE.Flexible collapsible pvc water bladder irrigation water bladder water storage bladders tank is widely used in the field(s) of FlexiTank and the like. After assessing the needs of customers and the market, we have successfully made Flexible collapsible pvc water bladder irrigation water bladder water storage bladders tank have some wanderful advantages, all of which can help make it stand out in the market. Moreover, its appearance is highly emphasized as well. Our creative designers make the product unique in its appearance by keeping close up with the latest industry trends.
| Grade: | Food | Suitable for: | 20" Container |
| Place of Origin: | Shandong, China | Brand Name: | wolize |
| Model Number: | D001 | Product Name: | Flexible Water Tank |
| Material: | PVC | Color: | Blue, Green, Grey, Yellow |
| Shape: | Rectangle | Accessories: | Valve, Air Vent, Protect Corner |
| Application: | Non-hazardous Liquid Storage and Transportation | Certificate: | ISO9001:2000 |
| Thickness: | 0.80mm-2mm | Life time: | 7-10 Years |
| Capacity: | 1000L-1000000L |
Flexible collapsible pvc water bladder irrigation water bladder water storage bladders tank
All our water bladders can be customized as you require. We can change the standard dimensions, shape of the tank, fittings and fitting positions upon request. Please note, some customisation(s) are subject to an extra cost. Please contact us for further information.
The tanks are made by reinforced fabric with PVC/ TPU coated and showing a pillow shape when the tank is full.Collapsible pillow tanks are a flexible storage option designed to provide both small and bulk water storage on your site, facility, home, or business location. Also known as bladder tanks, these tanks are constructed from a wide range of materials equipped to handle different climates and liquid storage requirements. Fabric options for these collapsible water tanks are determined by the liquid it will store. Available fabric options can be used to store drinking water, gray water, fuel, or a combination of liquids. Please be sure to specify the type of liquid you will store so that we can ensure your pillow tank is built from the right material.
| Capacity |
Dimensions (empty) LxW in m |
Heightin m | Weightin kg |
Fold size in m3 |
| 1000L | 2.8 x 1.5 | 0.3 | 11 | 0.04 |
| 2000L | 2.8 x 2.3 | 0.50 | 16 | 0.06 |
| 3000L | 3.2 x 2.8 | 0.55 | 21 | 0.09 |
| 5000L | 4.5 x 2.6 | 0.60 | 32 | 0.1 |
| 8000L | 4.3 x 3.4 | 0.80 | 37 | 0.2 |
| 10,000L | 5.0 x 3.8 | 0.90 | 46 | 0.3 |
| 15,000L | 5.5 x 4.2 | 0.90 | 59 | 0.35 |
| 20,000L | 5.7 x 4.6 | 1.00 | 65 | 0.4 |
| 30,000L | 6.8 x 5.7 | 1.10 | 96 | 0.6 |
| 50,000L | 8.2 x 7.2 | 1.10 | 145 | 0.7 |
| 80,000L | 11.7 x 7.2 | 1.20 | 206 | 0.9 |
| 100,000L | 11.0 x 9.5 | 1.40 | 253 | 1.3 |
| 200,000L | 16.6 x 9.5 | 1.50 | 600 | 2.0 |
| 500,000L | 21.0 x 16.0 | 1.60 | 900 | 5.0 |
| 800,000L | 25.0 x 17.0 | 2.5 | 1000 | 8.0 |
| 1,000,000L | 26.0 x 18.0 | 2.5 | 1200 | 9.0 |
The speciality of rectangular tank is similar to pillow tank , it is widely used in transportation, farm irrigation, oil exploitation and other related industries .Its capacity is the most accurate , because of its shape. And it needs less material than pillow tank, therefore it’s cost-effective.
|
Volume in m³ |
Expansion dimension (Top Diameter x Bottom Diameter) in m |
Fully-loaded height in m |
Volume in m³ |
Expansion dimension (Top Diameter x Bottom Diameter) in m |
Fully-loaded height in m |
| 0.2 | 0.5 * 0.85 | 0.6 | 5 | 2.0 * 3.4 | 1 |
| 0.3 | 0.65 * 1.0 | 0.6 | 8 | 2.3 * 3.5 | 1.2 |
| 0.5 | 0.7 * 1.2 | 0.7 | 10 | 2.0 * 4.0 | 1.4 |
| 1 | 0.8 * 1.8 | 0.8 | 20 | 3.4 * 4.8 | 1.5 |
| 2 | 1.4 * 2.4 | 0.8 | 30 | 4.2 * 6.0 | 1.5 |
| 3 | 1.5 * 2.6 | 0.9 | 50 | 4.6 * 8.0 | 1.6 |
| 4 | 1.6 * 2.8 | 1.1 | 75 | 9.2 * 5.2 | 1.8 |
TPU MATERIAL TANK
The main characteristics of the TPU (Polyurethane) coating fabric:
Light weight,high strength,puncture resistance,tearing resistant, as well as temperature range of -50℃~+80℃;
The wide for the thickness range of coating fabric is between 0.9mm and 3.0mm.
The new anti-odor TPU (polyurethane)-coating fabric has a high barrier performance and its gas permeability is reduced by 80% than that of
the ordinary one. The new anti-odor TPU (polyurethane)-coating fabric can hold gasoline and reduce the volatilization of gasoline.
The Service life of TPU: can be folded by 100000 times.
The TPU products can be reused 7--10 years.
| Capacity |
Dimensions (empty) LxW in m |
Heightin m | Weightin kg | Fold sizein m3 |
| 1000L | 2.8 x 1.5 | 0.3 | 11 | 0.04 |
| 2000L | 2.8 x 2.3 | 0.50 | 16 | 0.06 |
| 3000L | 3.2 x 2.8 | 0.55 | 21 | 0.09 |
| 5000L | 4.5 x 2.6 | 0.60 | 32 | 0.1 |
| 8000L | 4.3 x 3.4 | 0.80 | 37 | 0.2 |
| 10,000L | 5.0 x 3.8 | 0.90 | 46 | 0.3 |
| 15,000L | 5.5 x 4.2 | 0.90 | 59 | 0.35 |
| 20,000L | 5.7 x 4.6 | 1.00 | 65 | 0.4 |
| 30,000L | 6.8 x 5.7 | 1.10 | 96 | 0.6 |
| 50,000L | 8.2 x 7.2 | 1.10 | 145 | 0.7 |
| 80,000L | 11.7 x 7.2 | 1.20 | 206 | 0.9 |
| 100,000L | 11.0 x 9.5 | 1.40 | 253 | 1.3 |
| 200,000L | 16.6 x 9.5 | 1.50 | 600 | 2.0 |
| 500,000L | 21.0 x 16.0 | 1.60 | 900 | 5.0 |
| 800,000L | 25.0 x 17.0 | 2.5 | 1000 | 8.0 |
| 1,000,000L | 26.0 x 18.0 | 2.5 | 1200 | 9.0 |
The onion tank can stands by itself. It is widely used in fish farm , fire protection, household to store water . It is open top and less occupied area ,
it is very convenient in arid region.
| Volume in m³ |
Expansion dimension (Top Diameter x Bottom Diameter) in m |
Fully-loaded height in m |
| 0.2 | 0.5 * 0.85 | 0.6 |
| 0.3 | 0.65 * 1.0 | 0.6 |
| 0.5 | 0.7 * 1.2 | 0.7 |
| 1 | 0.8 * 1.8 | 0.8 |
| 2 | 1.4 * 2.4 | 0.8 |
| 3 | 1.5 * 2.6 | 0.9 |
5,000 gallon Military Style bladders are also available in 3,000, 10,000, 25,000, 50,000, & larger up to 210,000 US gallons for potable, non-potable, and black water storage. Interstate Products 5000 gallon Flexible WaterBladders are available in military style and more common commercialversions. The water storage bladders are also called blivets or pillow bladder tanks. Storage bladders are collapsible tanks featuring compact,
lightweight, durable, and easy to deploy design. They can be used for avariety of commercial, industrial, and military refueling or storageapplications. Water storage bladders are used for military, commercial,and industrial storage applications. Water bladders are ideal for temporary water fields, drinking water stations, disater or emergency response, and humanitarian missions.We produce flexible water bladders that can be installed easily under stumped buildings, decks, basements or even just on the ground, made to order, or standard sizes .Our water bladders can be adapted to service toilets, laundries, gardens, vegetable patches and drinking water, as well as many more applications

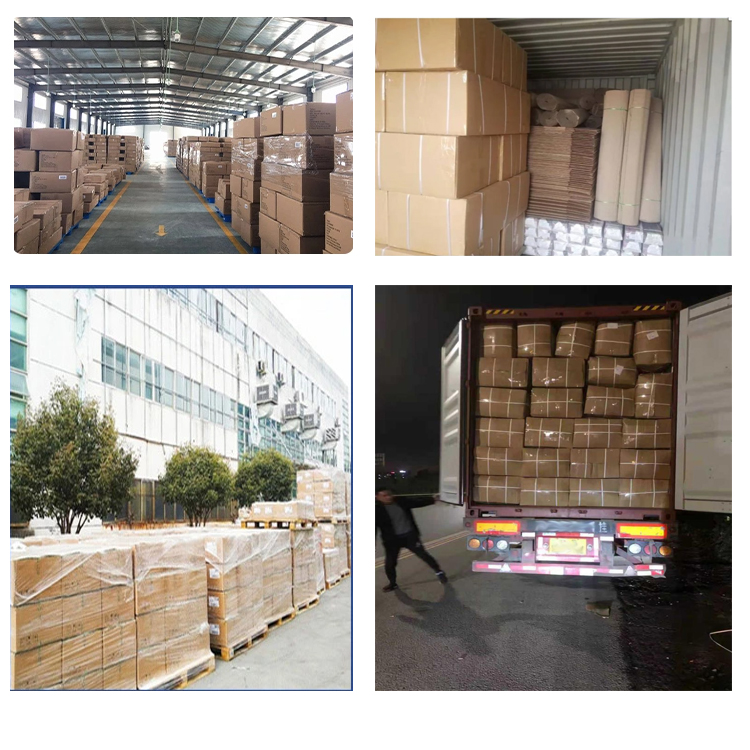

Water bladder /water tank Packaging & Delivery:
Packing details:export carton or wooden carton packing
FOB port:QingDao/TianJin/ShangHai
Delivery time:within 10-15 working days after we get your down payment
Pallet, Crate, Export Certified Crates , UPS & Common Carriers. Larger tanks packed with forklift slings to ease deployment
We have strict quality control and considerate customer service. The company has advanced equipment,
including high-speed braiding machines, steel wire spiral machines, advanced extruders, computer-controlled hydraulic testing machines and punching machines. We have
the best service. We are online 24 hours a day. If you send us an inquiry
on , we will reply you in time. We will answer your questions in time, and I also believe that our products can better help you expand your market share and accomplish your goals. We can also help you with your current headaches and propose solutions to help you solve the problem. At the same time, we will explain our product prices, related fees, payment methods, trade terms, product details, etc. in detail to you. For us, customers are first, we will provide you with the best service and make you feel at home.
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian.
Longevity is 7-10 years. Despite conjecture Water Bladders are UV stabilized which means they do not break down once exposed to direct sunlight and yes, the warranty periods are the same as for hard rigid tanks.
WOLIZE is a company mainly produce water bladder,water tank,fish farming pond,ras system fish farming pond. We have being strived in the field of production innovation, exploration, development for a long time. We'll continue to supply high quality water bladder,water tank,fish farming pond,ras system fish farming pond to meet the market demands. Our water bladder,water tank,fish farming pond,ras system fish farming pond are exported to Europe, America, Southeast Asia and many other countries and regions. The water bladder,water tank,fish farming pond,ras system fish farming pond are very popular with customers. And our businesses water bladder,water tank,fish farming pond,ras system fish farming pond.
We have been verified onsite by world-leading inspection company SGS ,Our factory hold 4000 square meter to produce the professional 100% Water storage bladders/tanks. It is seamless welded that can be float in the water.
There are 7-10pcs professional imported high frequency equipment to manufacturing these blassers. 80-100 workers to make the water bladder /water tank700-800 per day , 30,000pcs per month, 15,000pcs per year. Each water bladder /water tank have been inspected 4 time in our factory which raw material , half-products, completed product, 100% inspection before delivery. Currently, We have own design department to create the newest water bladder /water tank that more suitable for market required. And we are gladed to work with client to develop new water bladder /water tank.
Weclome to visit our factory and send us your ideas.
Q1: Can you offer samples water bladder /water tank?
A: Yes, we can send a sample to you in order that you can check the quality.
Q2:How can I get more information about your product?
A:You can send us an email or ask our online representatives and we can send you the latest catalog and price list.
Q3: Can I get any discount?
A: The price is negotiable, we can offer you discount price according to your quantity.
Q4: Can you provide custom sizes and styles?
A:Yes we can. please contact us directly
Q5:What is the payment way of your company?
A:T/T,sight L/C,Paypal,Western Union, trade assurance,Escrow,Etc.
Q6: What's your delivery time ?
A:Usually is 15-20 working days after received the payment. If your order is urgent, we can make for you in advance.
Q7: What's your Warranty?
A:7-10 years(Except for intentional damage).
