WOLIZE - Water Storage Bladders Fuel Bladder Tanks 3000 litre water storage bladder tank PVC TPU BLADDER
Utilizing technology makes the manufacturing process go smoothly and efficiently.With regard to the product advantages, the product can be widely found in the field(s) of Water Storage Bladders Fuel Bladder Tanks 3000 litre water storage bladder tank. Talents and technology are indispensable supporting factors for the Water Storage Bladders Fuel Bladder Tanks 3000 litre water storage bladder tank to be widely praised. Over the years,Water Storage Bladders Fuel Bladder Tanks 3000 litre water storage bladder tank has been widely recognized by customers who have cooperated.
| Grade: | Food | Suitable for: | 20" Container |
| Place of Origin: | Shandong, China | Brand Name: | wolize |
| Model Number: | D001 | Product Name: | Flexible Water Tank |
| Material: | PVC | Color: | Blue, Green, Grey, Yellow |
| Shape: | Rectangle | Accessories: | Valve, Air Vent, Protect Corner |
| Application: | Non-hazardous Liquid Storage and Transportation | Certificate: | ISO9001:2000 |
| Thickness: | 0.80mm-2mm | Life time: | 7-10 Years |
| Capacity: | 1000L-1000000L |
Water Storage Bladders Fuel Bladder Tanks 3000 litre water storage bladder tank

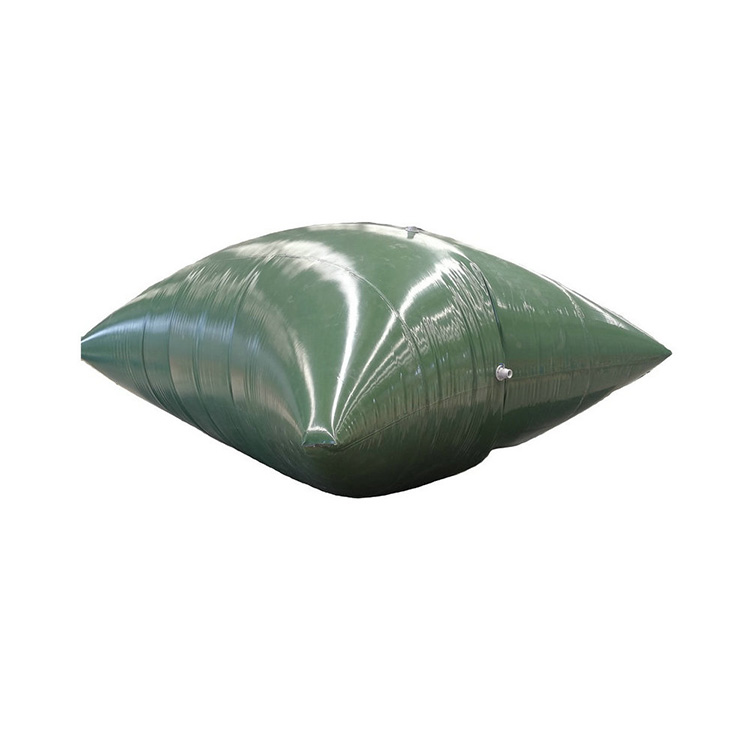

The tanks are made by reinforced fabric with PVC/ TPU coated and showing a pillow shape when the tank is full.Collapsible pillow tanks are a flexible storage option designed to provide both small and bulk water storage on your site, facility, home, or business location. Also known as bladder tanks, these tanks are constructed from a wide range of materials equipped to handle different climates and liquid storage requirements. Fabric options for these collapsible water tanks are determined by the liquid it will store. Available fabric options can be used to store drinking water, gray water, fuel, or a combination of liquids. Please be sure to specify the type of liquid you will store so that we can ensure your pillow tank is built from the right material.
|
Capacity |
Dimensions(empty)LxW in m |
Heightin m |
Weightin kg |
Fold sizein m3 |
|
1000L |
2.8 x 1.5 |
0.3 |
11 |
0.04 |
|
2000L |
2.8 x 2.3 |
0.50 |
16 |
0.06 |
|
3000L |
3.2 x 2.8 |
0.55 |
21 |
0.09 |
|
5000L |
4.5 x 2.6 |
0.60 |
32 |
0.1 |
|
8000L |
4.3 x 3.4 |
0.80 |
37 |
0.2 |
|
10,000L |
5.0 x 3.8 |
0.90 |
46 |
0.3 |
|
15,000L |
5.5 x 4.2 |
0.90 |
59 |
0.35 |
|
20,000L |
5.7 x 4.6 |
1.00 |
65 |
0.4 |
|
30,000L |
6.8 x 5.7 |
1.10 |
96 |
0.6 |
|
50,000L |
8.2 x 7.2 |
1.10 |
145 |
0.7 |
|
80,000L |
11.7 x 7.2 |
1.20 |
206 |
0.9 |
|
100,000L |
11.0 x 9.5 |
1.40 |
253 |
1.3 |
|
200,000L |
16.6 x 9.5 |
1.50 |
600 |
2.0 |
|
500,000L |
21.0 x 16.0 |
1.60 |
900 |
5.0 |
|
800,000L |
25.0 x 17.0 |
2.5 |
1000 |
8.0 |
|
1,000,000L |
26.0 x 18.0 |
2.5 |
1200 |
9.0 |

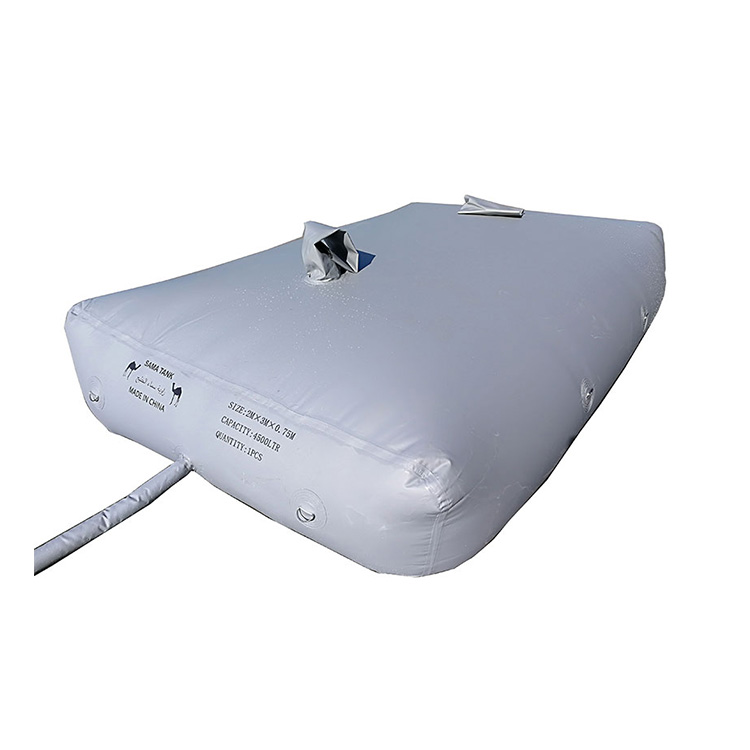

The speciality of rectangular tank is similar to pillow tank , it is widely used in transportation, farm irrigation, oil exploitation and other related industries . Its capacity is the most accurate , because of its shape. And it needs less material than pillow tank, therefore it’s cost-effective.
|
Volume in m³ |
Expansion dimension (Top Diameter x Bottom Diameter) in m |
Fully-loaded height in m |
Volume in m³ |
Expansion dimension (Top Diameter x Bottom Diameter) in m |
Fully-loaded height in m |
|
0.2 |
0.5 * 0.85 |
0.6 |
5 |
2.0 * 3.4 |
1 |
|
0.3 |
0.65 * 1.0 |
0.6 |
8 |
2.3 * 3.5 |
1.2 |
|
0.5 |
0.7 * 1.2 |
0.7 |
10 |
2.0 * 4.0 |
1.4 |
|
1 |
0.8 * 1.8 |
0.8 |
20 |
3.4 * 4.8 |
1.5 |
|
2 |
1.4 * 2.4 |
0.8 |
30 |
4.2 * 6.0 |
1.5 |
|
3 |
1.5 * 2.6 |
0.9 |
50 |
4.6 * 8.0 |
1.6 |
|
4 |
1.6 * 2.8 |
1.1 |
75 |
9.2 * 5.2 |
1.8 |
TPU MATERIAL TANK
The main characteristics of the TPU (Polyurethane) coating fabric:
Light weight,high strength,puncture resistance,tearing resistant, as well as temperature range of -50℃~+80℃;
The wide for the thickness range of coating fabric is between 0.9mm and 3.0mm.
The new anti-odor TPU (polyurethane)-coating fabric has a high barrier performance and its gas permeability is reduced by 80% than that of the ordinary one. The new anti-odor TPU (polyurethane)-coating fabric can hold gasoline and reduce the volatilization of gasoline.
The Service life of TPU: can be folded by 100000 times.
The TPU products can be reused 7--10 years.
|
Capacity |
Dimensions(empty)LxW in m |
Heightin m |
Weightin kg |
Fold sizein m3 |
|
1000L |
2.8 x 1.5 |
0.3 |
11 |
0.04 |
|
2000L |
2.8 x 2.3 |
0.50 |
16 |
0.06 |
|
3000L |
3.2 x 2.8 |
0.55 |
21 |
0.09 |
|
5000L |
4.5 x 2.6 |
0.60 |
32 |
0.1 |
|
8000L |
4.3 x 3.4 |
0.80 |
37 |
0.2 |
|
10,000L |
5.0 x 3.8 |
0.90 |
46 |
0.3 |
|
15,000L |
5.5 x 4.2 |
0.90 |
59 |
0.35 |
|
20,000L |
5.7 x 4.6 |
1.00 |
65 |
0.4 |
|
30,000L |
6.8 x 5.7 |
1.10 |
96 |
0.6 |
|
50,000L |
8.2 x 7.2 |
1.10 |
145 |
0.7 |
|
80,000L |
11.7 x 7.2 |
1.20 |
206 |
0.9 |
|
100,000L |
11.0 x 9.5 |
1.40 |
253 |
1.3 |
|
200,000L |
16.6 x 9.5 |
1.50 |
600 |
2.0 |
|
500,000L |
21.0 x 16.0 |
1.60 |
900 |
5.0 |
|
800,000L |
25.0 x 17.0 |
2.5 |
1000 |
8.0 |
|
1,000,000L |
26.0 x 18.0 |
2.5 |
1200 |
9.0
|

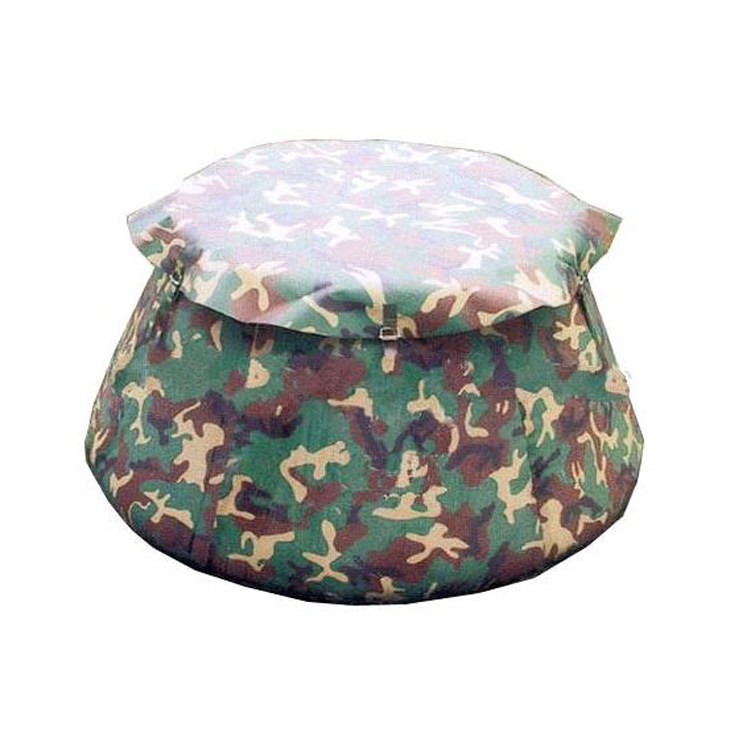

The onion tank can stands by itself. It is widely used in fish farm , fire protection, household to store water . It is open top and less occupied area , it is very convenient in arid region.
|
Volume in m³ |
Expansion dimension (Top Diameter x Bottom Diameter) in m |
Fully-loaded height in m |
|
0.2 |
0.5 * 0.85 |
0.6 |
|
0.3 |
0.65 * 1.0 |
0.6 |
|
0.5 |
0.7 * 1.2 |
0.7 |
|
1 |
0.8 * 1.8 |
0.8 |
|
2 |
1.4 * 2.4 |
0.8 |
|
3 |
1.5 * 2.6 |
0.9 |
Packaging & Delivery:
Packing details:export carton or wooden carton packing
FOB port:QingDao/TianJin/ShangHai
Delivery time:within 10-15 working days after we get your down payment
We have strict quality control and considerate customer service. The company has advanced equipment,
including high-speed braiding machines, steel wire spiral machines, advanced extruders, computer-controlled hydraulic testing machines and punching machines. We have
the best service. We are online 24 hours a day. If you send us an inquiry
on , we will reply you in time. We will answer your questions in time, and I also believe that our products can better help you expand your market share and accomplish your goals. We can also help you with your current headaches and propose solutions to help you solve the problem. At the same time, we will explain our product prices, related fees, payment methods, trade terms, product details, etc. in detail to you. For us, customers are first, we will provide you with the best service and make you feel at home.
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,
French,Russian,Korean,Hindi,Italian.
WOLIZE is a company with import and export rights in the industries of bio-pharma, oleochemical and OEM production. We have being strived in the field of production innovation, exploration, development for a long time. We'll continue to supply high quality production to meet the market demands. Our products are exported to Europe, America, Southeast Asia and many other countries and regions. The main products are very popular with customers. And our businesses include PAC, Potassium sulfate, Fatty acid methyl ester, biodiesel ,rubber hose and other chemical materials.
Certification
Q1: Can you offer samples?
A: Yes, we can send a sample to you in order that you can check the quality.
Q2:How can I get more information about your product?
A:You can send us an email or ask our online representatives and we can send you the latest catalog and price list.
Q3: Can I get any discount?
A: The price is negotiable, we can offer you discount price according to your quantity.
Q4: Can you provide custom sizes and styles?
A:Yes we can. please contact us directly
Q5:What is the payment way of your company?
A:T/T,sight L/C,Paypal,Western Union, trade assurance,Escrow,Etc.
Q6: What's your delivery time ?
A:Usually is 15-20 working days after received the payment. If your order is urgent, we can make for you in advance.
Q7: What's your Warranty?
A:1-2 years(Except for intentional damage).
