After long-term exploration and hard work, Shandong Wolize Biotechnology Co., Ltd. have launched China online shopping hot selling flexible water tank 10000 liter water bladder that lead the industry. The reason why products are loved by the market is the emphasis on high-tech research and development. Shandong Wolize Biotechnology Co., Ltd. will always stick to the business principle of 'quality first, customers foremost' and strive towards building an even more competitive and capable company aiming for an even better future.
Grade: | Food | Suitable for: | 20" Container |
Place of Origin: | Shandong, China | Brand Name: | wolize |
Model Number: | D001 | Product Name: | hot selling flexible water tank 10000 liter water bladder |
Material: | PVC | Color: | Blue, Green, Grey, Yellow |
Shape: | Rectangle | Accessories: | Valve, Air Vent, Protect Corner |
Application: | Non-hazardous Liquid Storage and Transportation | Certificate: | ISO9001:2000 |
Thickness: | 0.80mm-2mm | Life time: | 7-10 Years |
Capacity: | 1000L-1000000L |
Capacity | Dimensions (empty) LxW in m | Heightin m | Weightin kg | Fold size in m3 |
1000L | 2.8 x 1.5 | 0.3 | 11 | 0.04 |
2000L | 2.8 x 2.3 | 0.50 | 16 | 0.06 |
3000L | 3.2 x 2.8 | 0.55 | 21 | 0.09 |
5000L | 4.5 x 2.6 | 0.60 | 32 | 0.1 |
8000L | 4.3 x 3.4 | 0.80 | 37 | 0.2 |
10,000L | 5.0 x 3.8 | 0.90 | 46 | 0.3 |
15,000L | 5.5 x 4.2 | 0.90 | 59 | 0.35 |
20,000L | 5.7 x 4.6 | 1.00 | 65 | 0.4 |
30,000L | 6.8 x 5.7 | 1.10 | 96 | 0.6 |
50,000L | 8.2 x 7.2 | 1.10 | 145 | 0.7 |
80,000L | 11.7 x 7.2 | 1.20 | 206 | 0.9 |
100,000L | 11.0 x 9.5 | 1.40 | 253 | 1.3 |
200,000L | 16.6 x 9.5 | 1.50 | 600 | 2.0 |
500,000L | 21.0 x 16.0 | 1.60 | 900 | 5.0 |
800,000L | 25.0 x 17.0 | 2.5 | 1000 | 8.0 |
1,000,000L | 26.0 x 18.0 | 2.5 | 1200 | 9.0 |
Volume in m³ | Expansion dimension (L x W) in m | Fully-loaded height in m | Volume in m³ | Expansion dimension (L x W) in m | Fully-loaded height in m |
0.2 | 1.0*0.5 | 0.4 | 30 | 9.0*4.8 | 0.7 |
0.5 | 1.5*0.7 | 0.5 | 40 | 10.0*5.0 | 0.8 |
1 | 2.0*1.0 | 0.5 | 60 | 10.0*6.0 | 1.0 |
2 | 2.5*1.3 | 0.6 | 100 | 10.0*7.2 | 1.4 |
5 | 4.0*2.1 | 0.6 | 200 | 14.0*9.0 | 1.6 |
10 | 6.*2.8 | 0.6 | 300 | 17.6*10.0 | 1.7 |
20 | 8.0*3.5 | 0.7 | 400 | 19.2*11.6 | 1.8 |

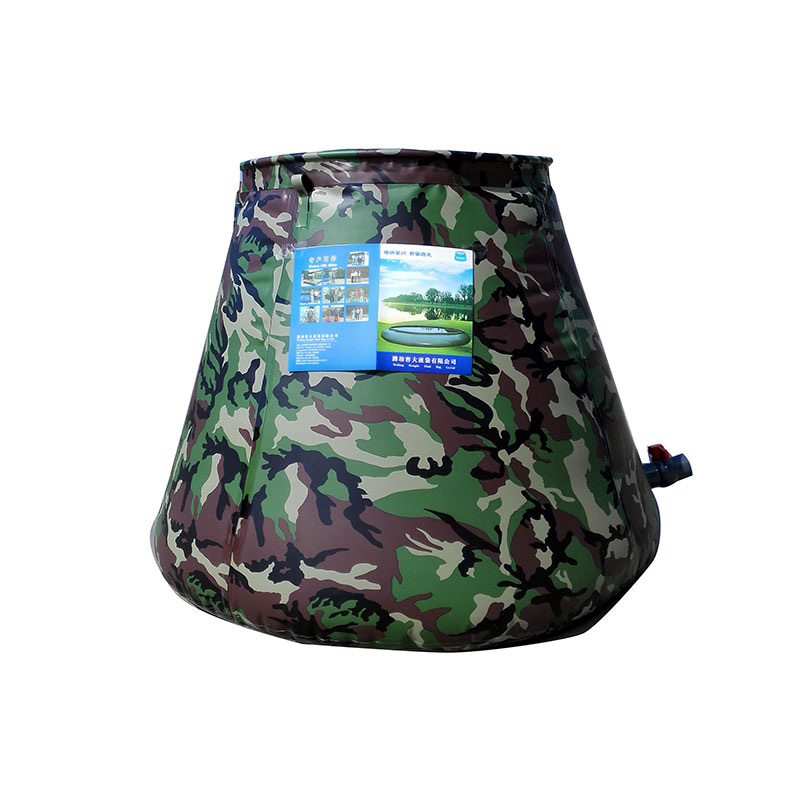

Volume in m³ | Expansion dimension (Top Diameter x Bottom Diameter) in m | Fully-loaded height in m |
0.2 | 0.5 * 0.85 | 0.6 |
0.3 | 0.65 * 1.0 | 0.6 |
0.5 | 0.7 * 1.2 | 0.7 |
1 | 0.8 * 1.8 | 0.8 |
2 | 1.4 * 2.4 | 0.8 |
3 | 1.5 * 2.6 | 0.9 |
